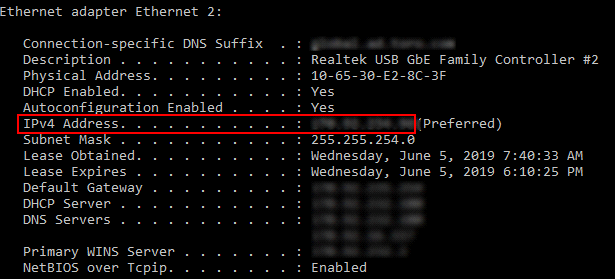

Backwards check IP addresses

•Click on the Start button, immediately type

cmd<enter>

•After the > type

ipconfig /all<enter>

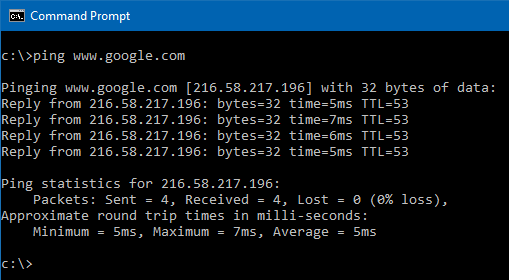

Ping IP addresses

•Click on the Start button, immediately type

cmd<enter>

•After the > type

ping www.google.com


•After the > type

ping 216.58.193.196

•After the > type

ping <Target IP address><enter>

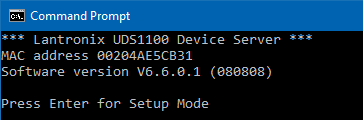

Telnet

Like “Ping” but confirms connection and identifies module’s MAC number

•Click on the Start button, immediately type

cmd<enter>

•After the > type

telnet <Target IP address> 9999<enter>
