Basic ET Programming

Previous pageReturn to chapter overviewNext page

Set Reference ET

1.From Laguna Desktop, navigate to the Weather menu

2.Select ET Settings

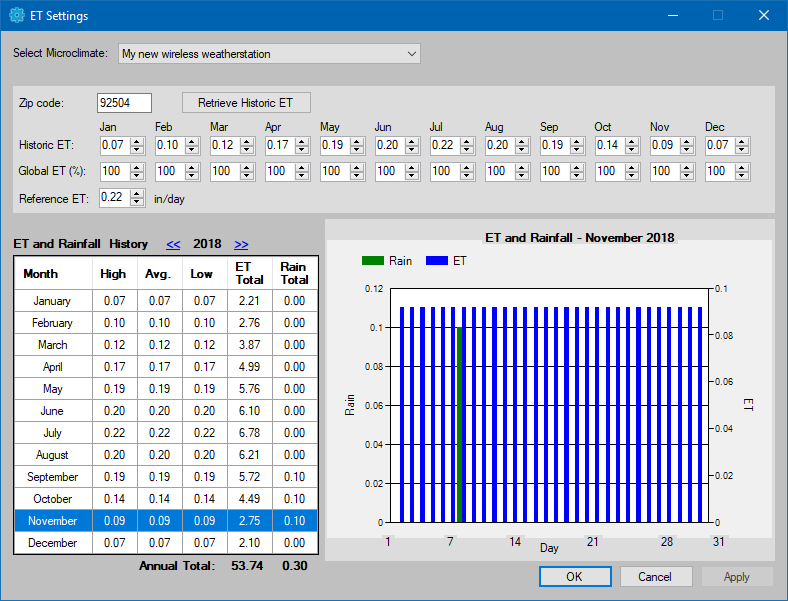

ETSettings

3.If you have more than one weather station, select the microclimate.

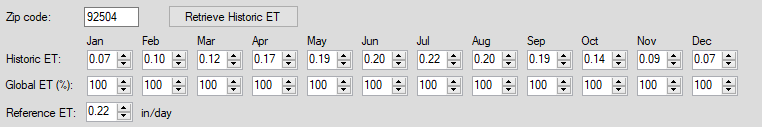

ETSettings2

4.Populate the Zip Code field and click on Retrieve Historic ET button.  This will populate each months historic ET value.

5.Identify the month with the weather you will be programming your controllers for and note the Historic ET value

6.If you have actual daily ET information (from a weather station, etc.) note the Average and High ET value for the month

7.Select the value that most represents your program and type it into the Reference ET slot.



Set ET Calculation Mode

1.From the Laguna Desktop, navigate to the Controller menu

2.Select Programming

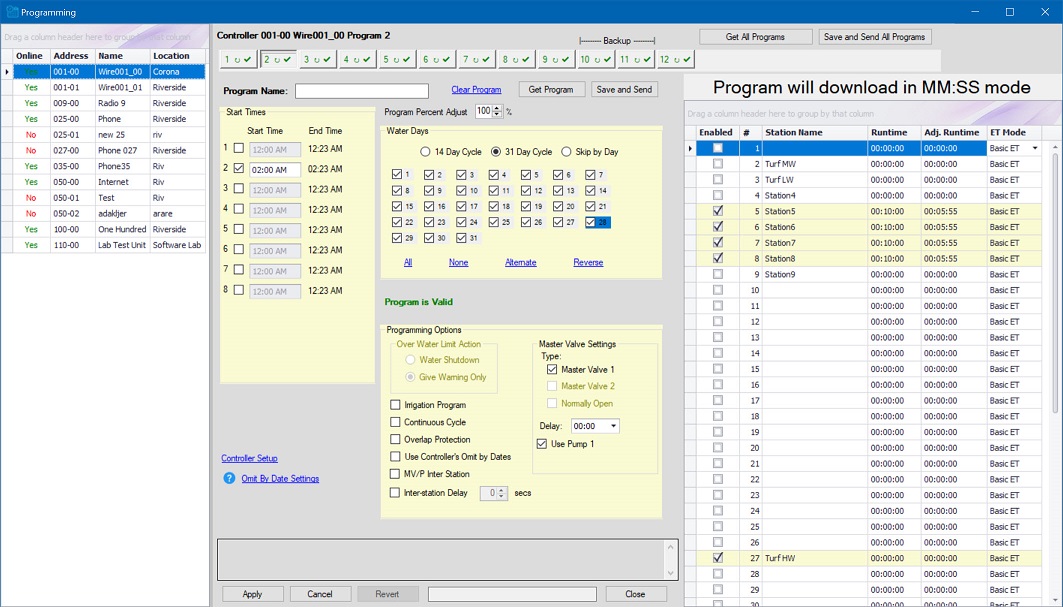

Programming10

3.Select your target controller from the controller list

4.In any program tab, navigate to the ET Mode column in the Station grid

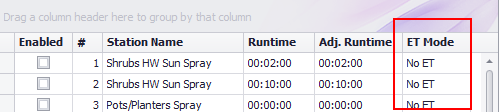

ProgrammingETMode

5.Highlight a cell for a station and select the Basic ET from the drop-down.

6.Repeat for each station

7.Click Apply



See Also

Programming
