Laguna can automatically put controllers into a Rain Shutdown mode or set controllers to Automatic Mode using manager-selected thresholds.  Automatic shutdown limits are set with an “Hourly Threshold” and a “Daily Threshold”.  Restart can be set manually or automatically by the system.

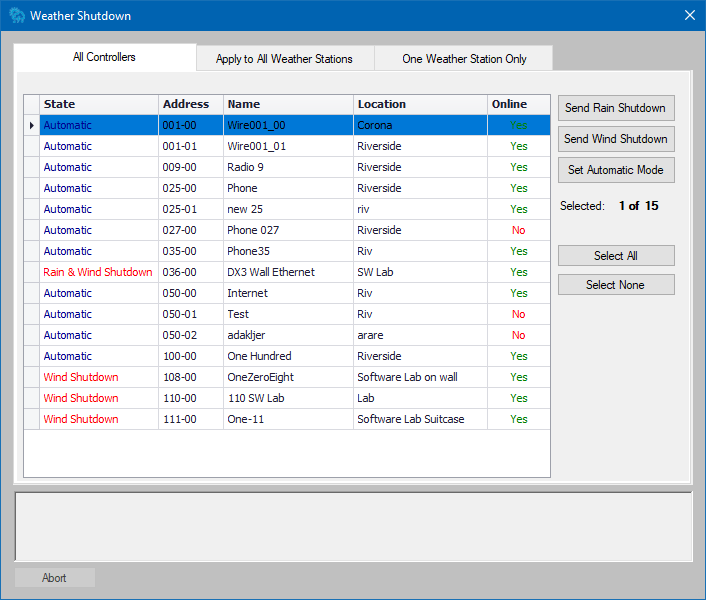

1.From Laguna Desktop, click on Rain Shutdown icon or use the Weather menu and select Weather Shutdown

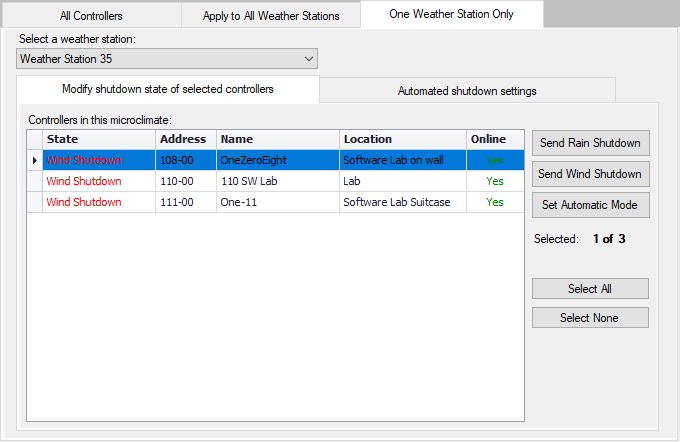

2.Select the One Weather Station Only tab

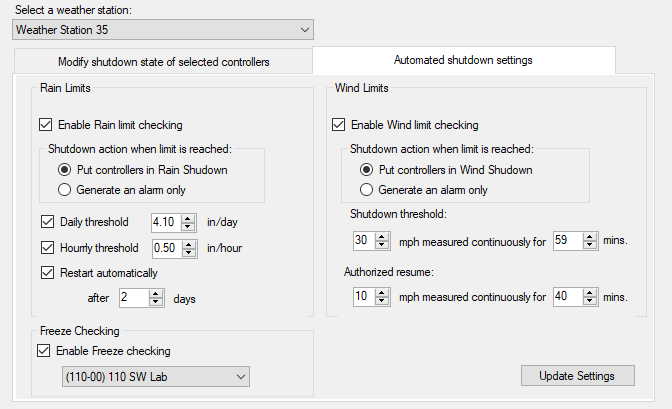

3.Select the Automated Shutdown Settings tab

4.Enable or Disable Rain Limit Checking

5.If enabled, select “Action” desired if limits are reached

6.Set Daily and Hourly threshold based on landscape requirements

7.Select whether “Automatic Restart” is desired and set delay for restart.

8.Select Update Settings

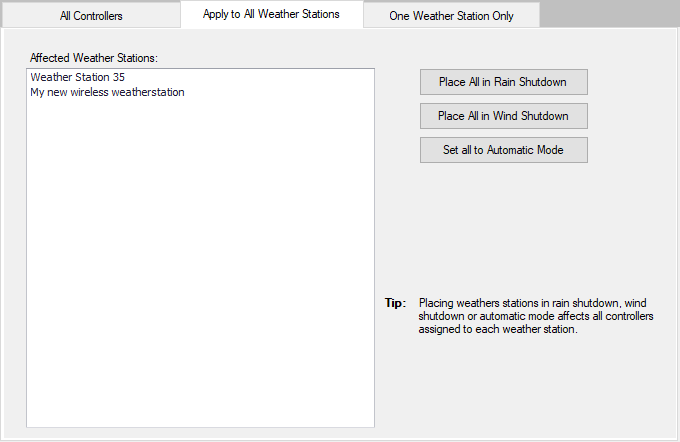

Apply to All Weather Stations
